Construction Machinery Piston Pump Corrosion-Resistant Coating 3050 RPM Rating‌

Brand Name:	SY Hydraulic
Model Number:	SY-A4VG
MOQ:	1pc
Price:	USD 2000-6000 / pc
Payment Terms:	T/T
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Theory:

Plunger Pump

Condition:

Brand New

Application:

Industial, Construction, Metallurgical Machinery

HS Code:

8413503190

Packaging Details:

Standard Export Wooden Case

Supply Ability:

500 pcs per month

Highlight:

corrosion-resistant construction piston pump

3050 RPM construction piston pump

construction machinery pump with coating

Product Description

Construction Machinery Piston Pump Corrosion-Resistant Coating 3050 RPM Rating‌

Features:

1. Swashplate-type axial piston variable pump design

2. Application in closed-circuit hydrostatic drive

3. Flow proportional to drive speed and displacement

4. Infinitely variable flow via swashplate angle adjustment

5. Smooth flow direction reversal via neutral swashplate position

6. Optimized rotating group design for axial pistons

7. High power density with compact construction

8. 450 bar maximum operating pressure capability

9. Multi-directional load-bearing drive shaft design

10. Integrated swashplate angle sensor interface

Technical data:

Size		NG		56	71	90	125	180
Geometric displacement, per revolution	variable pump	V_{g max}	cm³	56	71	90	125	180
	variable pump	V_{g max}	cm³	56	71	90	125	180
	boost pump (at Δp = 20 bar)	V_{g Sp}	cm³	11.6	19.6	19.6	28.3	39.8
Rotational speed	maximum at V_{g max}	n_nom	rpm	3600	3300	3050	2850	2500
	limited maximum	n_max1	rpm	3900	3600	3300	3250	2900
	intermittent maximum	n_max2	rpm	4500	4100	3800	3450	3000
	minimum	n_min	rpm	500	500	500	500	500
Flow	at n_nom and V_{g max}	q_v	l/min	202	234	275	356	450
Power at n_nom, V_{g max}	Δp = 400 bar	P	kW	134	156	183	238	300
Torque with V_{g max}	Δp = 400 bar	M	Nm	357	452	573	796	1146
Torque with V_{g max}	Δp = 100 bar	M	Nm	89	113	143	199	286
Rotary stiffness of drive shaft	S	c	kNm/rad	80.8	98.8	158.1	218.3	244.5
	T	c	kNm/rad	95	120.9	–	252.1	318.4
	A	c	kNm/rad	95.8	142.4	176.8	256.5	–
	Z	c	kNm/rad	78.8	122.8	137	223.7	319.6
	U	c	kNm/rad	–	–	107.6	–	–
Moment of inertia of the rotary group		J_TW	kgm²	0.0066	0.0097	0.0149	0.0232	0.0444
Maximum angular acceleration		α	rad/s²	24000	21000	18000	14000	11000
Case volume		V	l	1.5	1.3	1.5	2.1	3.1
Weight (without through drive) approx.		m	kg	38	50	60	80	101

Specifications:

Warranty	1 Year
Model	SY-A4VG
Place of Origin	China
Type	Costruction machinery piston pump
Color	Available any color
HS Code	8413503190
Application	excavator, road rollers, pavers
Feature	High Quality
Delivery Time	15-30 Days after Payment
MOQ	1 Piece

Applications:

1. Optimized for special and military vehicles, the A4VG series axial piston pump delivers robust performance and reliable hydraulic power under extreme conditions. Its variable displacement design adapts to changing loads and tactical maneuvers, ensuring precise fluid control and operational safety. Integrated boost functionality and dual relief valves offer protection against overload and shock impacts. This innovative hydraulic solution meets rigorous military standards and enhances vehicle mobility, making it an indispensable component for defense applications and transport systems in challenging environments.

2. Engineered for military applications, the A4VG series hydraulic pump delivers high-performance fluid power and precise control essential for special and defense vehicles. Its variable displacement mechanism adapts to combat maneuvers and heavy load variations, ensuring consistent and reliable operation in critical missions. Equipped with integrated boost and dual relief safety features, the pump offers superior protection against pressure surges and mechanical shocks. This innovative solution enhances vehicle responsiveness and durability, making it a strategic asset for modern military transport systems.

3. Designed for heavy-duty transport and crane systems, the A4VG series piston pump delivers fluid power and reliability in demanding lifting and transport applications. Its variable displacement design adjusts fluid output to accommodate fluctuating loads, ensuring smooth operation during hoisting and movement tasks. Integrated boost features and dual relief valves provide enhanced safety and protection against overloads. This hydraulic solution improves operational efficiency, minimizes downtime, and supports precise control, making it an ideal choice for heavy transport and crane machinery.

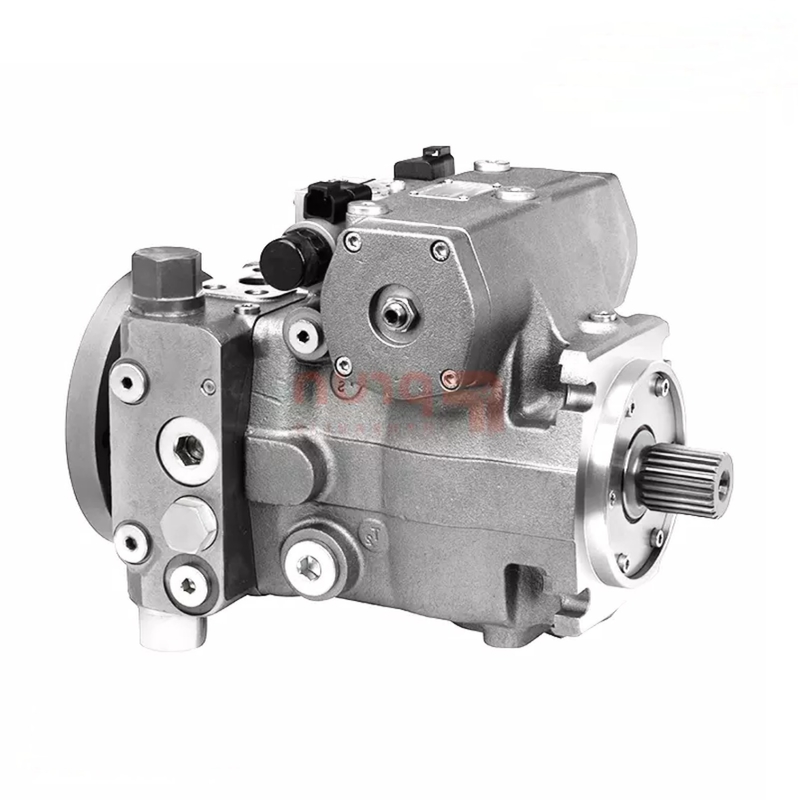

Construction Machinery Piston Pump Corrosion-Resistant Coating 3050 RPM Rating‌ 0

Competitive Advantage:

1. Built for extreme reliability and high performance, the A4VG series excels in delivering precise, variable hydraulic power through advanced control systems, integrated safety measures, and optimized fluid dynamics, making it a highly efficient piston pump that reduces downtime, maintenance costs, and energy consumption across industrial and mobile applications every day.

2. Closed-circuit piston pump with 350 bar pressure ensures stable power for mining machinery under heavy loads, integrated relief valves prevent system overload‌

3. Swashplate axial piston pump enables infinite flow adjustment and smooth reversal for marine propulsion, achieving precise bidirectional flow control‌

4. High-pressure piston pump with dual relief valves handles pressure spikes in tunnel boring machines, integrated boost pump ensures reliability in complex geology‌

5. Closed-circuit energy recovery in axial piston pump reduces energy consumption for port cranes, swashplate angle control enhances operational efficiency‌

The Analysis For Rexroth A4VG Closed Circuit Piston Pump Common Breakdown :

1. In this axial piston pump, operation under extreme ambient temperatures can cause instability due to material expansion, fluid viscosity changes, and potential sensor inaccuracies, resulting in fluctuating performance, increased wear, and potential system shutdown, which necessitates thermal management enhancements, accurate temperature compensation, and robust design modifications for reliable operation consistently.

2. In this hydraulic pump, deviations in manufacturing tolerances or assembly misalignments can cause internal leakage between chambers, resulting in reduced efficiency, unbalanced pressure distribution, and accelerated component wear, thereby requiring detailed quality inspections, precision reassembly, and adherence to strict tolerance standards to restore optimal performance and prevent recurring issues promptly.

3. In this piston pump, the presence of abrasive particles in the hydraulic fluid can cause accelerated wear on internal components such as valves, pistons, and seals, leading to decreased performance, leakage issues, and system failure, which necessitates effective filtration, regular fluid analysis, and timely component replacement to ensure reliability to ensure reliability.
