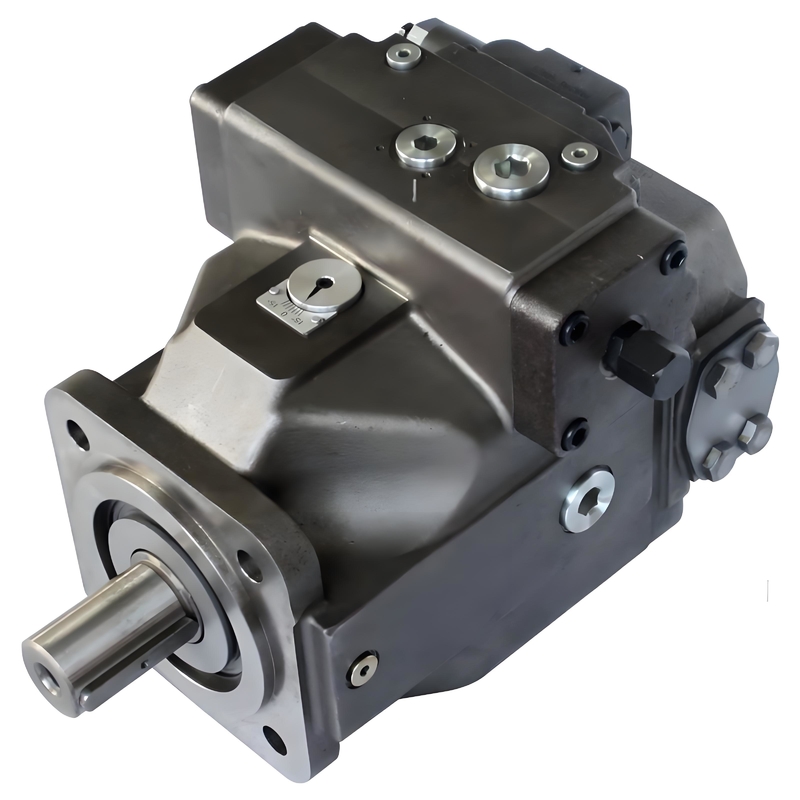

A4VSO180 EO2 Electric Control Hydraulic Axial Piston Pump-324 L/min 350 Bar

A4VSO180 EO2 Electric Control Hydraulic Axial Piston Pump-324 L/min 350 Bar

Features:

Technical data:

Specifications:

Applications:

Competitive Advantage:

1. Every A4VSO axial piston pump undergoes rigorous multi‑stage factory testing, including pressure cycling, endurance life tests, and leak inspections to verify compliance with strict reliability criteria. These comprehensive quality assurance protocols identify any potential manufacturing defects before shipment, ensuring that each hydraulic pump delivers consistent performance right out of the box. End users experience reduced commissioning time, fewer warranty claims, and smoother system integration. OEMs can confidently specify the A4VSO in mission‑critical machinery—such as tunnel boring machines, injection molding presses, and mobile construction fleets—knowing that each unit meets or exceeds industry benchmarks for durability and operational uptime.

2. The A4VSO hydraulic pump adopts a compact flange and versatile control interface that is compatible with DIN 43650–standard solenoid valves and a broad range of third‑party electro‑hydraulic modules. This plug‑and‑play design reduces wiring complexity and allows system integrators to incorporate the pump into existing control architectures with minimal adaptation. As a result, project delivery times are shortened, commissioning is simplified, and field compatibility issues are minimized. Manufacturing plants, mobile equipment OEMs, and retrofit service providers gain flexibility to mix and match components from multiple suppliers without compromising on performance or supportability.

3. By employing precisely engineered micro‑clearance machining and optimized internal passage geometries, the A4VSO axial piston pump achieves exceptionally low internal leakage rates, leading to improved system responsiveness and reduced parasitic losses. This high‑precision manufacturing results in faster actuator reaction times and lower continuous energy consumption, especially in applications with frequent start‑stop cycles such as automated assembly lines, robotic press feeds, and high‑throughput packaging machines. The reduced leakage also diminishes internal heat generation, further enhancing volumetric efficiency and extending slope of efficiency curves across operating ranges.

The Analysis For Rexroth A4VSO Piston Pump Common Breakdown:

1. Piping-induced cavitation causing internal shock: High-frequency flow pulsations or improperly designed discharge piping can create localized vacuum zones in the line, leading to cavitation during the pump’s suction phase. These cavitation events generate impact loads within the chamber, accelerating fatigue of internal components and producing characteristic cavitation noise. To mitigate this, install pulsation dampeners or hydraulic accumulators to smooth out flow fluctuations, and redesign piping layouts to minimize abrupt diameter changes and excessively long straight runs that exacerbate cavitation risks for the axial piston pump.

2. Pump housing flange fatigue cracking due to excessive vibration: If insufficient vibration isolation exists between the pump housing flange and mounting base, operational vibrations can induce micro‑movements that gradually loosen flange bolts and initiate fatigue cracks at the flange interface. Symptoms include visible cracks at the flange and recurrent bolt loosening. To prevent this, install rubber vibration isolators between the flange and mounting surface and periodically verify bolt torque with calibrated tools, thereby preserving the structural integrity of the axial piston pump attachment.

3. Controller software bug causing displacement errors: If the PLC or servo controller interfacing with the axial piston pump contains software bugs or incorrect parameter settings, it may output erroneous PWM signals to the electro‑hydraulic proportional valves. This results in inaccurate displacement modulation, manifested as unstable flow and sluggish actuator response. Troubleshoot by reviewing control logic, using an oscilloscope to verify coil drive pulse widths against expected values, and, if needed, update firmware or restore factory default configurations to ensure the hydraulic pump responds precisely to control commands.
