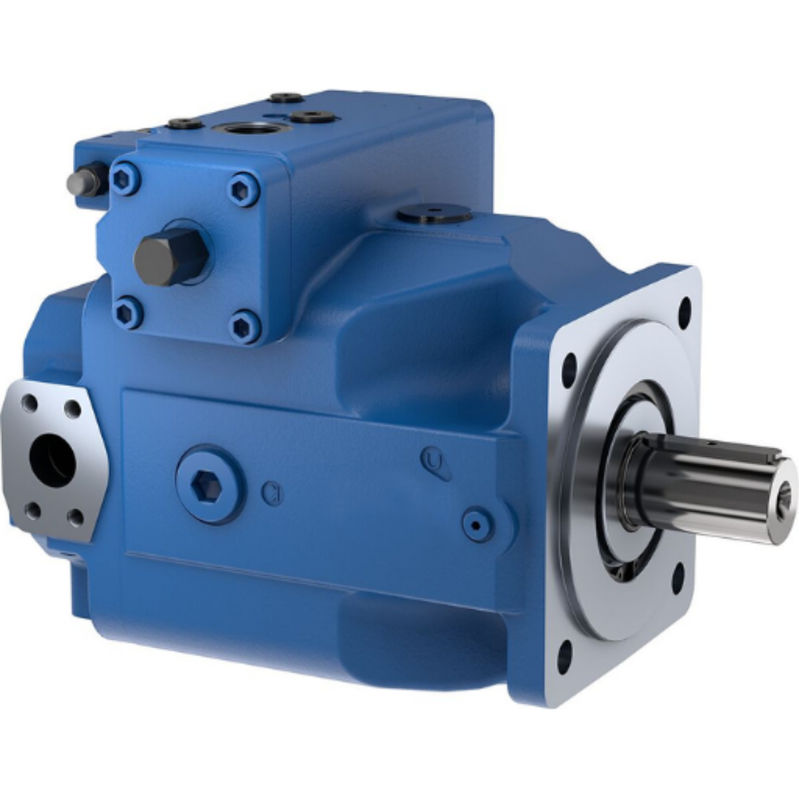

Variable Displacement Hydraulic Axial Piston Pump For Heavy Duty Industrial Machine

Brand Name:	SY Hydraulic
Model Number:	SY-A4VSO
MOQ:	1pc
Price:	USD 1000-2000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Drive Mode:

Hydrostatic Drive

Color:

Customized

Material:

Cast Iron

Trademark:

ShaoYang Hydraulic

Origin:

China

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

Heavy Duty Axial Variable Displacement Pump

Industrial Machine Hydraulic Axial Piston Pump

Product Description

High-Performance Hydraulic Axial Piston Pump for Heavy-Duty industrial machine

Features:

1. The variable displacement axial piston pump type A4VSO in swashplate design for open circuit hydrostatic drives

2. The flow is proportional to the input drive speed and displacement. By adjustment the swashplate, it is possible to infinitely vary the flow

3. Excellent suction characteristics

4. Low noise level, long service life

5. Drive shaft capable of absorbing axial and radial loads

6. Modular design, good power/weight ratio

7. Short control time

8. Through drive and pump combinations possible

9. Swashplate angle indicator

10. Optional mounting position

11. Optional on HF fluids under reduced operational parameters possible

12. Variable pump with axial piston rotary group of swash -plate design for hydrostatic drives in open circuit

Technical data:

Size		NG		40	71	125	180	250	355	370	500
Geometric displacement per revolution		V_{g max}	cm³	40	71	125	180	250	355	370	500
Maximum rotational speed	at V_{g max}	n_nom	rpm	2600	2200	1800	1800	1500	1500	1500	1320
Maximum rotational speed	at V_g ≤ V_{g max}	n_max	rpm	3200	2700	2200	2100	1800	1700	1700	1600
Flow	at n_nom and V_{g max}	q_v	l/min	104	156	225	324	375	532	555	660
Power	at n_nom , V_{g max} and Δp = 350 bar	P	kW	61	91	131	189	219	311	323	385
	at 1500 rpm	P	kW	35	62	109	158	219	311	323	339
	at 1800 rpm	P	kW	42	74	131	189	262	–	–	–
Torque	at V_{g max} and Δp = 350bar	M _max	Nm	223	395	696	1002	1391	1976	2061	2783
Torque	and Δp = 100 bar	M	Nm	64	113	199	286	398	564	589	795
Rotary stiffness of drive shaft	Shaft end P	c	kNm/rad	80	146	260	328	527	800	800	1145
Rotary stiffness of drive shaft	Shaft end Z	c	kNm/rad	77	146	263	332	543	770	770	1136
Moment of inertia		J_TW	kgm²	0.0049	0.0121	0.03	0.055	0.0959	0.19	0.19	0.3325
Maximum angular acceleration		α	rad/s²	17000	11000	8000	6800	4800	3600	3600	2800
Case volume		V	l	2	2.5	5	4	10	8	8	14
Weight (without through drive) approx.		m	kg	39	53	88	102	184	207	207	320

Specifications:

Warranty		1 Year
Model		SY-A4VSO
Place of Origin		China
Type		Hydraulic axial piston pump
Color		Available any color
HS Code		8413503190
Application		Hydraulic Presses
Feature		High Quality
Delivery Time		15 Days after Payment
MOQ		1 Piece

Applications:

1. Recycling and Waste Management Equipment: Its low-noise operation, durability, and precise flow control make the A4VSO pump an optimal choice for recycling and waste management systems.

2. Rail Maintenance Equipment: Its durable construction and stable hydraulic performance make the A4VSO pump well-suited for continuous, heavy-duty rail maintenance equipment.

3. Public Transportation Systems: The pump’s efficient energy conversion and modular design help meet the rigorous performance standards of modern public transportation systems.

4. Industrial Automation Systems: A4VSO’s smart control and modular design integrate seamlessly into industrial automation systems, ensuring reliable and efficient operation.

5. Specialized Mobile Equipment: Offering flexibility, robust performance, and precise control, the A4VSO pump is ideal for specialized mobile equipment across various industries.

Competitive Advantage:

1. Rapid Response and Control: Featuring swift control response, the A4VSO axial piston pump is optimized for dynamic systems, enhancing precision in high-speed machine tools and automation systems.

2. Modular and Compact Design: With its modular construction and compact structure, the A4VSO offers excellent integration flexibility and ease of maintenance across diverse.

3. Low Noise Operation: With advanced pre-compression and swashplate technology, the A4VSO axial piston pump minimizes pressure pulsations and noise, contributing to quieter, more efficient operation.

4. Competitive Global Advantage: With exceptional durability, energy efficiency, and advanced control features, the A4VSO piston pump offers a competitive edge in markets ranging from packaging machinery to mining equipment.

5. High-Speed Operational Efficiency: The innovative design of the A4VSO axial piston pump enables rapid and precise hydraulic adjustments, making it the ideal solution for high-speed operations in machine tools and automation systems.

FAQ:

Q: Are you trading company or manufacturer?
Re: We are manufacturer.
Q: How long is the Warranty?
Re: One-year warranty.
Q: What is your payment terms?
Re: 30% deposit against production, 70% balance before shipping.
Q: How about the delivery time?
Re: Regular Models within 7 days, customiszed models and bulk order within 15-30 days.
