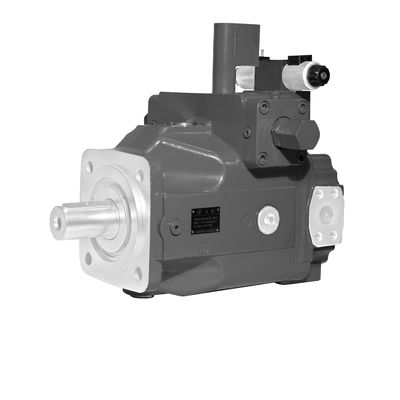

80-1145kNm/Rad Rotary Stiffness Rexroth Type Piston Pump For Precise Control

80-1145kNm/Rad Rotary Stiffness Rexroth Type Piston Pump For Precise Control

Brand Name:	SY Hydraulic
Model Number:	SY-A4VSO
MOQ:	1pc
Price:	USD 1000-2000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Rotational Speed:

Up To 3000 Rpm

Shaft Type:

Splined Or Keyed

Mounting Type:

Flange

Seal Type:

NBR Or FKM

Pressure:

350-400 Bar

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

Precise Control Rexroth Type Piston Pump

Rexroth Type Hydraulic Piston Pump

Product Description

80-1145kNm/rad Rotary Stiffness Rexroth Type Piston Pump for Precise Control

Technical data:

Size		NG		40	71	125	180	250	355	370	500
Geometric displacement per revolution		V_{g max}	cm³	40	71	125	180	250	355	370	500
Maximum rotational speed	at V_{g max}	n_nom	rpm	2600	2200	1800	1800	1500	1500	1500	1320
Maximum rotational speed	at V_g ≤ V_{g max}	n_max	rpm	3200	2700	2200	2100	1800	1700	1700	1600
Flow	at n_nom and V_{g max}	q_v	l/min	104	156	225	324	375	532	555	660
Power	at n_nom , V_{g max} and Δp = 350 bar	P	kW	61	91	131	189	219	311	323	385
	at 1500 rpm	P	kW	35	62	109	158	219	311	323	339
	at 1800 rpm	P	kW	42	74	131	189	262	–	–	–
Torque	at V_{g max} and Δp = 350bar	M _max	Nm	223	395	696	1002	1391	1976	2061	2783
Torque	and Δp = 100 bar	M	Nm	64	113	199	286	398	564	589	795
Rotary stiffness of drive shaft	Shaft end P	c	kNm/rad	80	146	260	328	527	800	800	1145
Rotary stiffness of drive shaft	Shaft end Z	c	kNm/rad	77	146	263	332	543	770	770	1136
Moment of inertia		J_TW	kgm²	0.0049	0.0121	0.03	0.055	0.0959	0.19	0.19	0.3325
Maximum angular acceleration		α	rad/s²	17000	11000	8000	6800	4800	3600	3600	2800
Case volume		V	l	2	2.5	5	4	10	8	8	14
Weight (without through drive) approx.		m	kg	39	53	88	102	184	207	207	320

Specifications:

Warranty		1 Year
Model		SY-A4VSO
Place of Origin		China
Type		Hydraulic piston pump
Color		Available any color
Material		Cast iron
Application		Industrial Machine
Feature		High Quality
Delivery Time		15 Days after Payment
MOQ		1 Piece

Description:

一 Variable displacement pump with axial piston rotary group of swashplate design for hydrostatic drives in open circuit

一 The flow can be infinitely varied by adjusting the swash plate angle

一 Excellent suction performance

一 Low noise level

一 Long service life

一 Modular design

一 Short control time

一 Variable through drive options

一 Visual swivel angle indicator

一 Short control times

一 Freely variable installation position

一 HF operation with reduced data possible

Applications:

1. Its compact, modular structure and flexible mounting options make the A4VSO ideal for industrial hydraulic systems, delivering consistent power.

2. Its precise flow control and low-noise operation ensure that the A4VSO piston pump optimizes the performance of material handling equipment in industrial settings.

3. The pump’s fast response and precision control capabilities support the high accuracy required in machine tools for quality machining.

4. A4VSO’s smart control and modular design integrate seamlessly into industrial automation systems, ensuring reliable and efficient operation.

5. The pump’s adjustable flow and pressure settings make it perfect for hydraulic test benches, accurately simulating various operating conditions.

Competitive Advantage:

1. High Energy Efficiency: The A4VSO axial piston pump delivers high energy conversion efficiency and precise swashplate control, ensuring outstanding performance in heavy-duty machinery applications.

2. Modular and Compact Design: With its modular construction and compact structure, the A4VSO offers excellent integration flexibility and ease of maintenance across diverse

3. Precise Variable Displacement: The innovative variable displacement feature of the A4VSO pump enables fine-tuned flow regulation, optimizing energy utilization in industries

4. Robust Durability: Designed for extreme conditions, the A4VSO piston pump offers exceptional durability and long service life, ensuring reliable performance under continuous heavy loads.

5. High-Pressure Performance: The A4VSO high-pressure capability ensures stable operation in demanding applications, delivering consistent hydraulic power for equipment like drilling rigs and forging machines.
