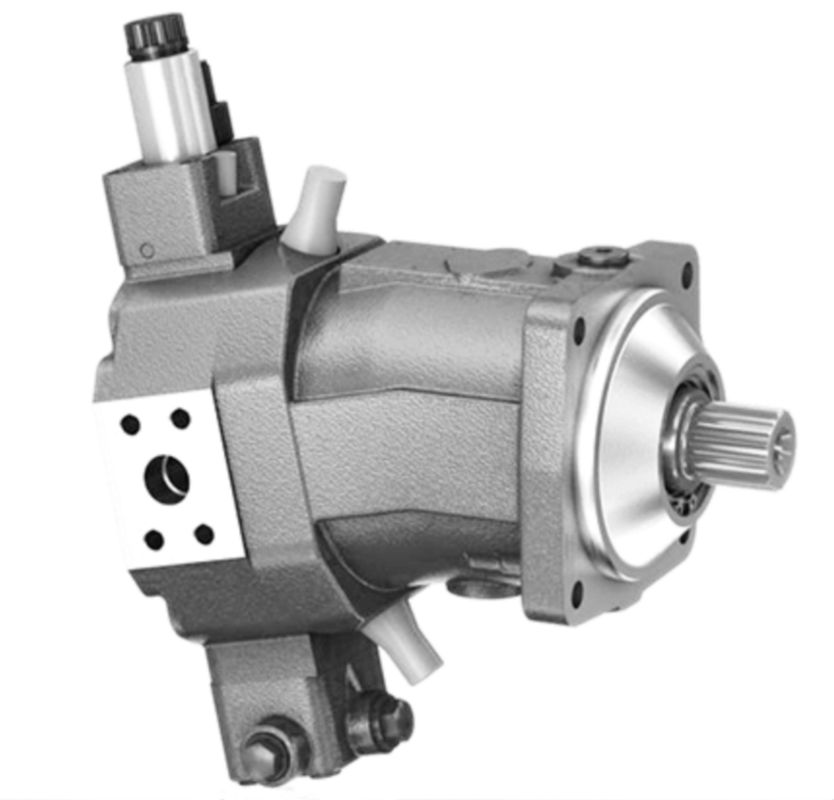

Cast Iron Agricultural Axial Piston Motor R902073988 High Power Density Design

Brand Name:	SY Hydraulic
Model Number:	SY-A6VM
MOQ:	1pc
Price:	USD 1000-3000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

HS Code:

8412299090

Maximum Speed:

7350 Rpm

Material:

Cast Iron

Trademark:

ShaoYang Hydraulic

Type:

Agricultural Axial Piston Motor

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

Cast Iron Agricultural Axial Piston Motor

High Power Density Axial Piston Motor

Product Description

R902073988 Agricultural Axial Piston Motor for Maximum Output Torque with 681Nm

Features:

1. Axial tapered piston rotary group with bent-axis design.

2. Suitable for open and closed hydrostatic circuits.

3. Universal design for mobile and stationary applications.

4. Infinitely variable displacement (Vg max to Vg min=0).

5. Wide speed-torque control range.

6. High power density design.

7. Output speed depends on pump flow and motor displacement.

8. Output torque increases with pressure differential and displacement.

9. Hydrostatic transmission with wide range control capability.

10. Multiple control device options.

Technical data:

Size		NG		80	107	140	160	200	250
Geometric displacement, per revolution		V_{g max}	cm³	80	107	140	160	200	250
		V_{g min}	cm³	0	0	0	0	0	0
		V_{g x}	cm³	51	68	88	61	76	205
Maximum rotational speed(while adhering to the maximum permissible inlet flow)	at V_{g max}	n_nom	rpm	3900	3550	3250	3100	2900	2700
	at V_g < V_{g x}	n_max	rpm	6150	5600	5150	4900	4600	3300
	where V_{g 0}	n_max	rpm	7350	6300	5750	5500	5100	3300
Inlet flow	at n_nom and V_{g max}	q_{v max}	l/min	312	380	455	496	580	675
Torque	at V_{g max} and Δp = 400 bar	T	Nm	509	681	891	1019	1273	‒
Torque	at V_{g max} and Δp = 350 bar	T	Nm	446	596	778	891	1114	1391
Rotary stiffness	V_{g max} to V_g/2	c_min	kNm/rad	16	21	34	35	44	60
Rotary stiffness	V_g/2 to 0 (interpolated)	c_min	kNm/rad	48	65	93	105	130	181
Moment of inertia for rotary group		J_TW	kgm²	0,008	0.0127	0.0207	0.0253	0.0353	0,061
Maximum angular acceleration		α	rad/s²	24000	19000	11000	11000	11000	10000
Case volume		V	l	1.2	1.5	1.8	2.4	2.7	3
Weight approx.		m	kg	36	46	61	62	78	100

Specifications:

Warranty		1 Year
Specification		SY-A6VM
Place of Origin		China
Type		Agricultural axial piston motor
Color		Available any color
HS Code		8412299090
Application		Agricultural machinery (harvesters, tractors)
Maximum pressure		450 bar
Delivery Time		15-30 Days after Payment
Displacement		71-250 cm³

Applications:

1. Tunnel boring machines (TBM): Infinitely adjustable displacement (0~Vg max) adapts to TBM’s complex geological conditions‌.

2. Metallurgical rolling mills: High-temperature alloy plunger rods suit molten metal environments, and low-noise design improves factory conditions‌.

3. Marine deck machinery (winches, windlasses): Wear-resistant copper sleeves and salt spray resistance suit marine environments, while hydrostatic drive enhances winch precision‌.

4. Oil drilling rigs: High power density (>0.5 kW/kg) improves drilling efficiency, and spherical oil distribution reduces leakage risks‌.

5. Wind turbine pitch control systems: Eco-friendly hydraulic oils meet green energy standards, and modular controls adapt to turbine multi-mode demands‌.

Competitive Advantage:

1. High-speed operation (3000 rpm)‌ meets extreme mobility requirements for military vehicles‌.

2. Integrated counterbalance valves‌ axial piston motor prevent slippage in waste compactors for enhanced safety‌.

3. Eco-friendly oil compatibility‌ aligns with green energy standards for wind turbines and municipal equipment‌.

4. Multi-interface (flange/shaft) design‌ enables rapid integration in AGV/logistics systems‌.

5. Long-life bearing systems‌ ensure continuous operation in dusty/humid environments for metallurgy/tunnel equipment‌.

Details model of Rexroth A6VM piston motor :

R902072575	A6VM160EP2D/63W-VAB020WB
R902073885	A6VM160HD2D/63W-VZB38800B Y
R902073988	A6VM107EP2D/63W-VAB027FHB
R902075014	AA6VM160EP2D/63W-VSD520WB S
R902075126	A6VM160HD2D/63W-VAB020B
R902075273	A6VM200EP2D/63W-VAB010XB S
R902075377	A6VM107HA1/63W-VZB370A SK
R902077265	A6VM200HA2/63W-XPB010A
R902078502	A6VM55HD2/63W-VZB027B
R902078686	A6VM200DA1/63W-VAB017FB
R902078775	A6VM160HA1T/63W-VAB027D0A S
R902078785	A6VM107HD1/63W-VPB017B
R902080884	A6VM140HA1T/63W-VZB027A
R902080993	A6VM107HA1/63W-VZB370A SK
R902084198	AA6VM55HA2T/63W-VSD520A
R902086504	A6VM200HA2T/63W-VSB020A S
R902086703	A6VM80EP2/63W-XZB027FPA S
R902086880	A6VM80DA2/63W-VZB027PB
R902088590	A6VM140EP2D/63W-VZB027PB
R902088952	A6VM160HD2D/63W-VAB027B
R902090303	A6VM80EP2/63W-VAB020PB
