A6VM Construction Machiery Piston Motor 71mL/r Flow Rate Anti Corrosion Coating

Brand Name:	SY Hydraulic
Model Number:	SY-A6VM
MOQ:	1pc
Price:	USD 1000-3000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Max Torque:

509-1273 Nm

Max Speed:

3900rpm

Transport Package:

Wooden Box

HS Code:

8412299090

Production Capacity:

10000 Pieces/Year

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

Construction Machiery Piston Motor A6VM

Anti Corrosion A6VM Piston Motor

Product Description

Construction Machiery Piston Motor 71mL/r Flow Rate Anti-Corrosion Coating

Features:

1. Compact and robust bearing system

2. Long service life design

3. Cost reduction via elimination of gear shifts

4. Compatibility with smaller pump sizes

5. Optimized starting characteristics

6. Low moment of inertia design

7. Pressure-compensated variable control

8. Multiple control modes (hydraulic/electric/mechanical)

9. High-efficiency filtration system design

10. Strong contamination resistance

Technical data:

Size		NG		80	107	140	160	200	250
Geometric displacement, per revolution		V_{g max}	cm³	80	107	140	160	200	250
		V_{g min}	cm³	0	0	0	0	0	0
		V_{g x}	cm³	51	68	88	61	76	205
Maximum rotational speed(while adhering to the maximum permissible inlet flow)	at V_{g max}	n_nom	rpm	3900	3550	3250	3100	2900	2700
	at V_g < V_{g x}	n_max	rpm	6150	5600	5150	4900	4600	3300
	where V_{g 0}	n_max	rpm	7350	6300	5750	5500	5100	3300
Inlet flow	at n_nom and V_{g max}	q_{v max}	l/min	312	380	455	496	580	675
Torque	at V_{g max} and Δp = 400 bar	T	Nm	509	681	891	1019	1273	‒
Torque	at V_{g max} and Δp = 350 bar	T	Nm	446	596	778	891	1114	1391
Rotary stiffness	V_{g max} to V_g/2	c_min	kNm/rad	16	21	34	35	44	60
Rotary stiffness	V_g/2 to 0 (interpolated)	c_min	kNm/rad	48	65	93	105	130	181
Moment of inertia for rotary group		J_TW	kgm²	0,008	0.0127	0.0207	0.0253	0.0353	0,061
Maximum angular acceleration		α	rad/s²	24000	19000	11000	11000	11000	10000
Case volume		V	l	1.2	1.5	1.8	2.4	2.7	3
Weight approx.		m	kg	36	46	61	62	78	100

Specifications:

Warranty	12 months
Transport Package	Standard Export Wooden Case
Certification	ISO9001: 2000
Type	Construction machinery piston motor
Production Capacity	1000 pcs/month
HS Code	8412299090
Application	Construction machinery mobile drive systems
Maximum torque	1273 Nm
Delivery Time	15-30 Days after Payment
Displacement	71-250cc

Applications:

1. In tunnel boring machines, the Rexroth A6VM variable motor is crucial for delivering controlled hydraulic power during continuous excavation processes. Integrated with a piston pump, the system provides stable fluid flow and accurate torque modulation, essential for maintaining consistent cutting performance. Its variable displacement feature allows fine adjustments to suit varying rock hardness and tunnel diameters. This innovative motor design enhances operational efficiency and safety in tunnel construction, ensuring prolonged reliability and high productivity under demanding subterranean conditions for excellence.

2. Optimized for tunnel boring applications, the Rexroth A6VM variable motor provides exceptional hydraulic control and durability required for continuous underground excavation. Integrated with an axial piston pump, the system delivers consistent power and smooth torque transitions, crucial for precise rock cutting and tunnel stabilization. Its variable displacement feature allows for adaptable performance adjustments to meet varying geological conditions. This robust motor design not only improves operational efficiency but also enhances safety, making it a solution in tunnel boring machine systems.

3. Energy Systems (Wind Pitch Control)‌: The A6VM axial piston motor adjusts wind turbine blade angles in real-time based on wind speed. Redundant hydraulic circuits and cold-start capability (-40°C) guarantee grid stability during storms, increasing annual energy output in offshore wind farms.

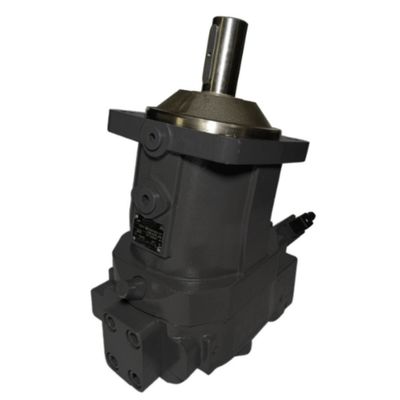

A6VM Construction Machiery Piston Motor 71mL/r Flow Rate Anti Corrosion Coating 0

Competitive Advantage:

1. Lightweight Construction‌: High-strength aluminum alloys cut weight by 25%, achieving 1.2 kW/kg power density for drone hydraulic actuators or firefighting robots requiring portability.

2. The Rexroth A6VM motor’s innovative design delivers seamless integration with various control systems, while its variable displacement and advanced hydraulic components, including an axial piston pump, enable precise adjustments and rapid load adaptation, ultimately offering enhanced efficiency, reduced energy consumption, and improved overall system reliability, boosting performance and longevity remarkably.

3. With an excellent thermal management system and high-temperature resistant design, the Rexroth A6VM axial piston motor maintains efficient heat dissipation and stable operation even during prolonged use in high-temperature environments; this hydraulic motor prevents performance degradation and failures caused by overheating, significantly extending equipment lifespan and making it ideally suited for demanding industrial applications such as metallurgy, steel processing, and marine engineering.

The Analysis For Rexroth A6VM Piston Motor Common Breakdown:

1. Unexpected electrical surges in the A6VM motor’s control circuitry can trigger erratic behavior and damage sensitive components; while simultaneous issues in the hydraulic pump’s power supply may exacerbate these faults, requiring surge protection installation and system reconfiguration to restore normal functionality for optimal performance at all times.

2. Faults in the electronic control system or software logic errors can prevent the Rexroth A6VM axial piston motor from correctly receiving and executing commands, causing overall system malfunction. Such electronic failures lead to anomalies in parameters like pressure, flow rate, and temperature, affecting accuracy and stability. Prompt software updates and electronic module maintenance are recommended to ensure the hydraulic motor operates efficiently and reliably.

3. Shaft Seal Leakage‌: Persistent leaks suggest excessive shaft runout (>0.05 mm) or lip wear. Measure runout with dial indicator and install dual-lip spring-energized seals.
