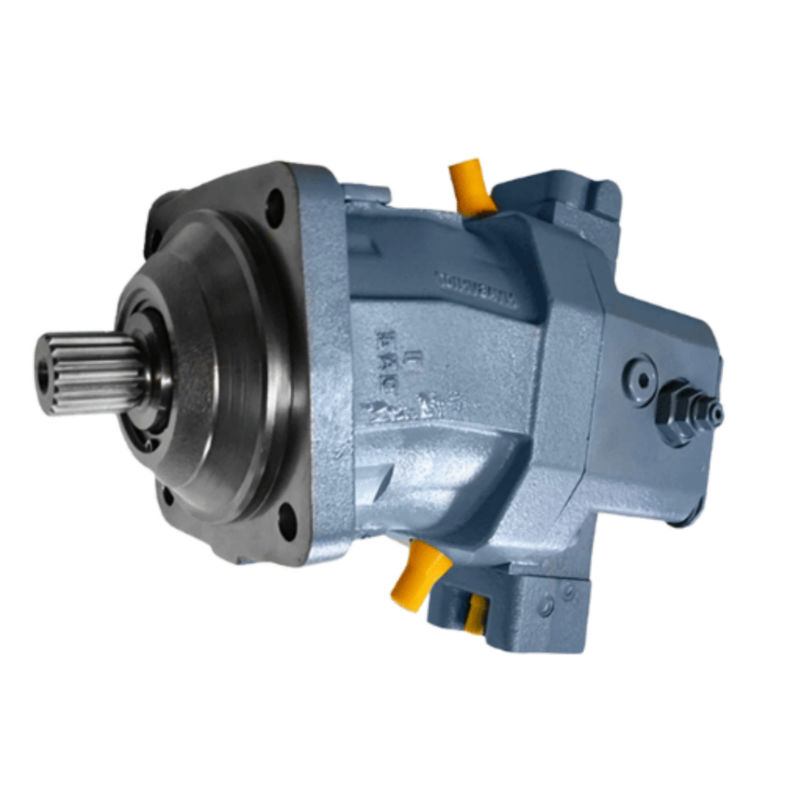

High Efficiency Bent Axis Piston Motor Pressure 400bar For Mobile Machinery

Brand Name:	SY Hydraulic
Model Number:	SY-A6VM
MOQ:	1pc
Price:	USD 1000-3000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Type:

Bent Axis Piston Motor

Application:

Construction Machinery

Flow:

71-250cc

Maximum Torque:

1273 Nm

Condition:

Brand New

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

High Efficiency Bent Axis Piston Motor

Bent Axis Piston Motor 400bar

Product Description

High-Efficiency Bent Axis Piston Motor with pressure 400bar for Mobile Machinery

Features:

1. Bent-axis design with axial tapered piston rotary group.

2. Compatibility with hydrostatic drives in open/closed circuits.

3. Dual applicability in mobile and stationary machinery.

4. Infinitely variable speed control with wide range.

5. Stepless adjustment for displacement from Vgmax to zero.

6. Regulation via pump flow and motor displacement synergy.

7. Torque amplification through pressure differential and displacement.

8. High-efficiency energy transfer in hydrostatic transmission.

9. Modular control device selection (mechanical/hydraulic/electronic).

10. Cost-efficient design eliminating gear shift mechanisms.

Technical data:

Size		NG		80	107	140	160	200	250
Geometric displacement, per revolution		V_{g max}	cm³	80	107	140	160	200	250
		V_{g min}	cm³	0	0	0	0	0	0
		V_{g x}	cm³	51	68	88	61	76	205
Maximum rotational speed(while adhering to the maximum permissible inlet flow)	at V_{g max}	n_nom	rpm	3900	3550	3250	3100	2900	2700
	at V_g < V_{g x}	n_max	rpm	6150	5600	5150	4900	4600	3300
	where V_{g 0}	n_max	rpm	7350	6300	5750	5500	5100	3300
Inlet flow	at n_nom and V_{g max}	q_{v max}	l/min	312	380	455	496	580	675
Torque	at V_{g max} and Δp = 400 bar	T	Nm	509	681	891	1019	1273	‒
Torque	at V_{g max} and Δp = 350 bar	T	Nm	446	596	778	891	1114	1391
Rotary stiffness	V_{g max} to V_g/2	c_min	kNm/rad	16	21	34	35	44	60
Rotary stiffness	V_g/2 to 0 (interpolated)	c_min	kNm/rad	48	65	93	105	130	181
Moment of inertia for rotary group		J_TW	kgm²	0,008	0.0127	0.0207	0.0253	0.0353	0,061
Maximum angular acceleration		α	rad/s²	24000	19000	11000	11000	11000	10000
Case volume		V	l	1.2	1.5	1.8	2.4	2.7	3
Weight approx.		m	kg	36	46	61	62	78	100

Specifications:

Trademark		SY-Hydraulic
Transport Package		Standard Export Wooden Case
Certification		ISO9001: 2000
Type		Bent axis piston motor
Production Capacity		1000 pcs/month
HS Code		8412299090
Application		excavator, loader
Maximum speed		6300 rpm
Delivery Time		15-30 Days after Payment
Displacement		71-250cc

Applications:

1. Tunnel boring machines (TBM): Wide viscosity adaptability supports TBM slurry drives, and corrosion-resistant materials extend tunnel equipment lifespan‌.

2. Metallurgical rolling mills: Modular controls (HA/HD/HZ) enable rolling mill speed adjustment, and precise flow control ensures sheet quality‌.

3. Marine deck machinery (winches, windlasses): Wear-resistant copper sleeves and salt spray resistance suit marine environments, while hydrostatic drive enhances winch precision‌.

4. Oil drilling rigs: Dual pressure ratings (400/450 bar) suit drilling rig impacts, and compact cartridge design saves installation space‌.

5. Wind turbine pitch control systems: Gearless transmission reduces pitch system maintenance, and low inertia moment enables rapid response to wind speed changes‌.

Competitive Advantage:

1. Dual pressure-rated axial piston motor (400/450 bar)‌ handles sudden load shocks in mining and oil drilling‌.

2. Spherical oil distribution technology‌ minimizes piston motor leakage (<0.1%) and extends hydraulic oil service life‌.

3. Gearless transmission design‌ reduces axial piston motor maintenance frequency and saves 30% lifecycle costs for axial piston motor‌.

4. Low-inertia piston rotor group‌ achieves start-stop response times <200 ms in port handling equipment‌.

5. Precise flow control (±1.5%)‌ maintains tension stability in paper/metallurgy production for higher product quality‌.

The Analysis For Rexroth A6VM Piston Motor Common Breakdown:

1. Abnormal wear of piston: Flow fluctuation with increased noise and reduced efficiency

Repair: Replace matched piston-cylinder components and check lubrication system

2. Scoring on valve plate: Increased pressure pulsation and abnormal housing temperature

Repair: Precision grinding or replacement of valve plate with surface roughness Ra≤0.2μm

3. Swashplate adjustment failure: Displacement unresponsive to control signals

Repair: Clean servo piston chamber and check proportional valve coil impedance (normal 2-5Ω)

4. Shaft seal leakage: Oil leakage at drive shaft

Repair: Replace dual-lip seals and check shaft journal wear (tolerance ±0.01mm)

5. Low charge pressure: Cavitation noise in closed circuit

Repair: Check charge pump gear clearance (standard 0.03-0.05mm) and replace inlet filter
