Agricultural Axial Piston Motor High Torque Design 160cc For Forest Applications

Brand Name:	SY Hydraulic
Model Number:	SY-A2FE
MOQ:	1pc
Price:	USD 500-1500 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Seals:

NBR Shaft Seal Ring In FKM

Max Pressure:

45MPa

Transport Package:

Export Standard Wooden Case

HS Code:

8412299090

Production Capacity:

10000 Pieces/Year

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

160cc Agricultural Axial Piston Motor

Axial Piston Motor High Torque

Product Description

Agricultural Axial Piston Motor High Torque Design 160cc For Forest Applications

Features:

1. Piston rings enhance volumetric efficiency
2. Standardized mounting interfaces compliant with DIN/ISO
3. Operational in extreme temperatures (-40°C to +90°C)
4. Optional flushing valves and pressure boosters
5. Bolt tightening torque requirements compliant with VDI 2230
6. Compatible with closed circuits when integrated with charge pump to prevent cavitation‌
7. Bent-axis configuration minimizes axial space for compact machine integration‌
8. Dynamic balance optimization of piston group for stable operation up to 5000 rpm‌
9. Reinforced housing and connections for intermittent peak pressure up to 450 bar‌
10. SAE-standard ports and electrical interfaces for multi-pump/valve coordination‌

Technical data:

Size		NG		45	56	63	80	90	107	125	160	180
Displacement geometric, per revolution		V_g	cm³	45.6	56.1	63	80.4	90	106.7	125	160.4	180
Speed maximum		n_nom	rpm	5600	5000	5000	4500	4500	4000	4000	3600	3600
Speed maximum		n_max	rpm	6200	5500	5500	5000	5000	4400	4400	4000	4000
Input flow at nnom and Vg		q_V	L/min	255	281	315	362	405	427	500	577	648
Torque at V_g and	Δp = 350 bar	T	Nm	254	313	351	448	501	594	696	893	1003
Torque at V_g and	Δp = 400 bar	T	Nm	290	357	401	512	573	679	796	1021	1146
Rotary stiffness		c	kNm/rad	4.18	5.94	6.25	8.73	9.14	11.2	11.9	17.4	18.2
Moment of inertia for rotary group		J_GR	kgm²	0.0024	0.0042	0.0042	0.0072	0.0072	0.0116	0.0116	0.022	0.022
Maximum angular acceleration		a	rad/s²	14600	7500	7500	6000	6000	4500	4500	3500	3500
Case volume		V	L	0.33	0.45	0.45	0.55	0.55	0.8	0.8	1.1	1.1
Mass (approx.)		m	kg	13.5	18	18	23	23	32	32	45	45

Specifications:

Warranty	1 Year
Transport Package	Standard Export Wooden Case
Structure	Axial Piston motor
Type	Mobile machinery piston motor
Production Capacity	2000-3000 pcs/month
HS Code	8412299090
Application	Mobile crane, Combine Harvester, Concrete mixer truck
Maximum speed	5600rpm
Delivery Time	15-30 Days after Payment
Displacemen	45-180cc

Applications:

1. In wind turbine blade control systems, the A2FE motor provides rapid dynamic response and precise control for swift adjustment of blade angles. When combined with a hydraulic motor, it delivers stable hydraulic power and efficient energy transfer even under fluctuating wind speeds. Its advanced bent‐axis design and compact structure ensure low energy consumption and reliable operation, enhancing overall turbine performance and power generation efficiency. This robust solution is essential for modern wind energy systems, ensuring exceptional performance with consistent reliability.

2. In wind turbine blade control applications, the A2FE motor ensures precise blade angle adjustment with efficient hydraulic transmission. Paired with a piston motor, it delivers rapid response and stable output under varying wind conditions. Its advanced bent‐axis design and compact structure provide accurate positioning and reduce energy consumption and maintenance requirements. This integrated hydraulic solution significantly improves turbine control accuracy and overall power generation efficiency, making it an ideal choice for modern wind energy systems, ensuring unparalleled efficiency and absolutely outstanding operational performance.

3. For mining conveyor drives, the 45MPa pressure capacity and 500cc/r displacement handle 80-ton ore impacts. ISO 3019-2 flange direct-connects planetary reducers for 0.1-15r/min stepless speed control, while VDI 2230 bolting ensures 99% reliability in 500mg/m³ dust environments‌

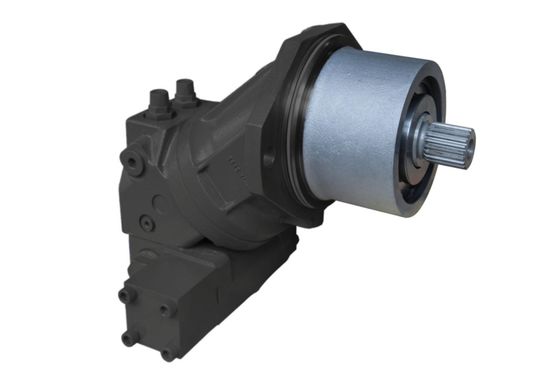

Agricultural Axial Piston Motor High Torque Design 160cc For Forest Applications 0

Competitive Advantage:

1. The A2FE motor provides precise flow control capabilities that ensure accurate fluid distribution and pressure regulation, and when integrated with a piston motor, it offers dynamic adjustments to match system demands, resulting in enhanced operational stability and improved performance for complex hydraulic applications, delivering unmatched flow precision consistently for excellence.

2. The A2FE motor benefits from a highly consistent advanced manufacturing process that ensures uniform quality and performance, and when integrated with a hydraulic motor, it delivers reliable, repeatable results, reducing variability and downtime, which makes it the ideal hydraulic solution for industries seeking dependable, cutting‐edge technology, ensuring unmatched process consistency, ensuring unmatched process consistency for excellence.

3. Built-in contamination sensor triggers automatic filter replacement at NAS 10 level. Maintenance intervals tripled for refuse compactor drives.

The Analysis For Rexroth A2FE Fixed Displacemen Piston Motor Common Breakdown:

1. During prolonged operation, the A2FE motor may suffer internal leakage due to contaminated hydraulic oil, aging seals, or improper installation, resulting in unstable pressure, reduced power output, and increased temperature. The fault often causes abnormal vibration and noise, requiring inspection of the hydraulic motor, cleaning, and seal replacement to restore stability.

2. Under heavy load or prolonged use, the A2FE motor may experience overheating that accelerates internal wear and oil degradation, resulting in performance loss and system failure. It is critical to inspect the cooling system, improve ventilation, and maintain an axial piston motor with proper hydraulic oil to control operating temperatures.

3.‌ ‌‌If abnormal vibration is observed in the A2FE motor, it may be caused by loose components, improper installation, or internal wear. Continuous vibration reduces system stability and increases noise. A thorough inspection of all fasteners and the piston motor assembly is recommended to tighten connections and restore proper balance.
