A6VM Model Bent Axis Piston Motor 3550 RPM Z Shaft Mining Equipment Application

Brand Name:	SY Hydraulic
Model Number:	SY-A6VM
MOQ:	1pc
Price:	USD 1000-3000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Displacement:

71-250cc

Color:

Black Or Customized

Max Pressure:

45MPa

Max Torque:

509-1273 Nm

Max Speed:

3900rpm

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

Z Shaft Bent Axis Piston Motor

Bent Axis Piston Motor 3550 RPM

Mining Equipment A6VM Piston Motor

Product Description

A6VM Model Bent Axis Piston Motor 3550 RPM Z Shaft Mining Equipment Application

Features:

1. Variable Displacement: Infinitely adjustable displacement from maximum to zero

2. Axial Piston Construction: Utilizes tapered pistons for efficient energy conversion

3. Bent-Axis Configuration: Integrated bent-axis rotary group for optimized power transmission

4. Dual Circuit Compatibility: Suitable for both open and closed hydrostatic circuits

5. Mobile Application Optimized: Specifically designed for mobile machinery applications

6. Precision Control Optimization: Enables accurate speed and torque regulation

7. Enhanced Reliability: Built for long-term stable and dependable performance

8. High Durability Under Harsh Conditions: Constructed to withstand severe operating environments

9. Modular Design: Facilitates easy system integration and scalability

10. Ease of Maintenance: Designed for simplified service and reduced maintenance intervals

Technical data:

Size		NG		80	107	140	160	200	250
Geometric displacement, per revolution		V_{g max}	cm³	80	107	140	160	200	250
		V_{g min}	cm³	0	0	0	0	0	0
		V_{g x}	cm³	51	68	88	61	76	205
Maximum rotational speed(while adhering to the maximum permissible inlet flow)	at V_{g max}	n_nom	rpm	3900	3550	3250	3100	2900	2700
	at V_g < V_{g x}	n_max	rpm	6150	5600	5150	4900	4600	3300
	where V_{g 0}	n_max	rpm	7350	6300	5750	5500	5100	3300
Inlet flow	at n_nom and V_{g max}	q_{v max}	l/min	312	380	455	496	580	675
Torque	at V_{g max} and Δp = 400 bar	T	Nm	509	681	891	1019	1273	‒
Torque	at V_{g max} and Δp = 350 bar	T	Nm	446	596	778	891	1114	1391
Rotary stiffness	V_{g max} to V_g/2	c_min	kNm/rad	16	21	34	35	44	60
Rotary stiffness	V_g/2 to 0 (interpolated)	c_min	kNm/rad	48	65	93	105	130	181
Moment of inertia for rotary group		J_TW	kgm²	0,008	0.0127	0.0207	0.0253	0.0353	0,061
Maximum angular acceleration		α	rad/s²	24000	19000	11000	11000	11000	10000
Case volume		V	l	1.2	1.5	1.8	2.4	2.7	3
Weight approx.		m	kg	36	46	61	62	78	100

Specifications:

Trademark	SY-Hydraulic
Transport Package	Standard Export Wooden Case
Certification	ISO9001: 2000
Type	Bent axis piston motor
Production Capacity	1000 pcs/month
HS Code	8412299090
Application	excavator, loader
Maximum speed	6300 rpm
Delivery Time	15-30 Days after Payment
Displacement	71-250cc

Applications:

1. In high-speed machine tools, the Rexroth A6VM axial piston motor offers a remarkable combination of low inertia and rapid response, delivering precise and efficient power transmission essential for high-speed machining processes. This axial piston motor ensures stable operation during high-speed cutting and precision processing, enabling accurate positioning and consistent performance under demanding conditions. Its advanced hydraulic regulation and efficient thermal management further optimize performance, making this hydraulic motor an ideal solution for enhancing productivity and precision in modern high-speed machine tool applications.

2. In high-speed machine tool applications, the Rexroth A6VM piston motor is designed to deliver high dynamic responsiveness and exceptional power density, ensuring consistent and precise hydraulic power for advanced machining tasks. This piston motor enables accurate control over cutting force and displacement speed even during rapid operations, reducing vibration and enhancing machining precision. With its innovative design and superior thermal management, this hydraulic motor remains reliable during prolonged high-speed operations, making it a key component for modern machine tools requiring high performance and durability.

3. Aircraft De-Icer Boom Control‌: This hydraulic motor operates at -40°C with heated reservoirs and cold-weather oil, precisely extending de-icing booms to maintain flight schedules in Arctic-region airports.

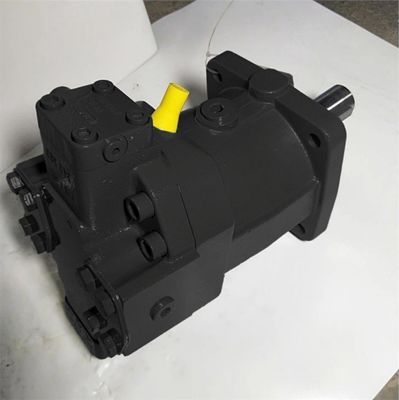

A6VM Model Bent Axis Piston Motor 3550 RPM Z Shaft Mining Equipment Application 0

Competitive Advantage:

1. Global Service Network‌: With 500+ service centers across 70 countries, Bosch Rexroth offers 24/7 support and 48-hour spare parts delivery, minimizing downtime for international mining or energy projects.

2. Delivering exceptional reliability and cutting-edge performance, the Rexroth A6VM variable motor is engineered to meet the rigorous demands of modern hydraulic systems, seamlessly integrating with a hydraulic pump to provide consistent pressure regulation, optimized flow dynamics, and precise torque output, ensuring peak performance in diverse industrial applications across global industries.

3. Utilizing cutting-edge digital control technology and real-time monitoring systems, the Rexroth A6VM piston motor enables precise management of hydraulic parameters and early fault detection, allowing customers to monitor equipment status in real time and optimize maintenance strategies; this hydraulic motor minimizes downtime and economic losses due to unexpected failures, making it a crucial power unit in modern smart manufacturing and Industry 4.0 applications.

The Analysis For Rexroth A6VM Piston Motor Common Breakdown:

1. Delayed system response in the Rexroth A6VM piston motor may be due to limited computational speed of internal control modules, signal transmission interference, or sensor latency, resulting in untimely adjustments of hydraulic parameters under dynamic conditions. This delay negatively affects operational smoothness and machining precision, and may trigger additional vibrations. Upgrading hardware and optimizing signal processing are effective measures to improve response times in this axial piston motor.

2. Prolonged operation and repeated load cycles can cause mechanical fatigue in the Rexroth A6VM hydraulic motor, leading to fatigue damage in internal components, increased vibrations, and structural imbalance. Fatigue damage reduces transmission efficiency and shortens the motor’s lifespan. Regular monitoring of critical component fatigue and timely replacement or reinforcement of fatigued parts are recommended to maintain the optimal performance of this piston motor.

3. Temperature Sensor Error‌: >10°C deviation indicates probe fouling or EMI interference. Clean probes and use twisted-pair shielded cables.
