400 Bar Rexroth Axial Piston A2FM Motor Low noise operation For Hydraulic Drives

Brand Name:	SY Hydraulic
Model Number:	SY-A2FM
MOQ:	1pc
Price:	USD 500-1500 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Drive Mode:

Hydrostatic Drive

Shaft Position:

Bent Axis

Type:

Fixed Displacement

Power:

Hydraulic

Max Speed:

5600 Rpm

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

400 Bar Axial Piston A2FM Motor

Rexroth A2FM Motor Low Noise

Product Description

Durable 400 Bar Rexroth Axial Piston Motor for Hydraulic Drives 125cm³

Features:

1. One-piece tapered piston with piston rings for sealing
2. Drive shaft bearing design for extended service life
3. Available in 10-1000cc/r displacement ranges
4. Modular design for flexible system integration
5. Compatible with mobile machinery and stationary industrial applications
6. High/low pressure ports compliant with DIN/ASME standards
7. Adjustable bent-axis angle (7°-45°)
8. Low-noise operation (<75dB(A))
9. Bidirectional rotation capability
10. Forced lubrication system for high-temperature stability

Technical data:

Size		NG		45	56	63	80	90	107	125	160	180
Displacement geometric, per revolution		V_g	cm³	45.6	56.1	63	80.4	90	106.7	125	160.4	180
Speed maximum		n_nom	rpm	5600	5000	5000	4500	4500	4000	4000	3600	3600
Speed maximum		n_max	rpm	6200	5500	5500	5000	5000	4400	4400	4000	4000
Input flow at nnom and Vg		q_V	L/min	255	281	315	362	405	427	500	577	648
Torque at V_g and	Δp = 350 bar	T	Nm	254	313	351	448	501	594	696	893	1003
Torque at V_g and	Δp = 400 bar	T	Nm	290	357	401	512	573	679	796	1021	1146
Rotary stiffness		c	kNm/rad	4.18	5.94	6.25	8.73	9.14	11.2	11.9	17.4	18.2
Moment of inertia for rotary group		J_GR	kgm²	0.0024	0.0042	0.0042	0.0072	0.0072	0.0116	0.0116	0.022	0.022
Maximum angular acceleration		a	rad/s²	14600	7500	7500	6000	6000	4500	4500	3500	3500
Case volume		V	L	0.33	0.45	0.45	0.55	0.55	0.8	0.8	1.1	1.1
Mass (approx.)		m	kg	13.5	18	18	23	23	32	32	45	45

Specifications:

Warranty	1 Year
Transport Package	Standard Export Wooden Case
Structure	Axial Plunger motor
Type	Mobile machinery piston motor
Production Capacity	2000-3000 pcs/month
HS Code	8412299090
Application	Mobile crane, Combine Harvester, Concrete mixer truck
Maximum speed	3600rpm
Delivery Time	15-30 Days after Payment
Displacemen	45-180cc

Applications:

1. In material handling equipment, the A2FM motor offers robust hydraulic performance for automated loading and unloading systems. Integrated with an axial piston motor, it delivers rapid response and precise control, ensuring smooth acceleration and deceleration during material transport. Its advanced bent‐axis design enhances dynamic stability and minimizes energy losses, thereby improving overall efficiency. This reliable hydraulic solution optimizes system performance and safety, making it an ideal choice for high-frequency, continuous material handling operations, ensuring maximum uptime and consistently high productivity.

2. In material handling systems, the A2FM motor provides high-precision hydraulic drive essential for automated warehouse operations. When paired with a hydraulic motor, it ensures excellent start-up performance and consistent output, even under heavy duty cycles. Its advanced bent‐axis design and energy-efficient structure optimize fluid transmission and minimize vibrations. This integrated solution enhances overall operational efficiency and safety, making it a top choice for large-scale logistics centers that require continuous, reliable performance in demanding material handling environments, ensuring unmatched consistency and absolutely outstanding operational performance.

3. With 92% starting torque efficiency and bidirectional rotation, A2FM achieves hook acceleration error <0.1 m/s² during heavy load lifting. Modular flange ports simplify multi-motor coordination, reducing hydraulic pipeline complexity by 30%. Enhanced seals prevent oil leakage during inclined operations, limiting system pressure fluctuations to ±5 bar.

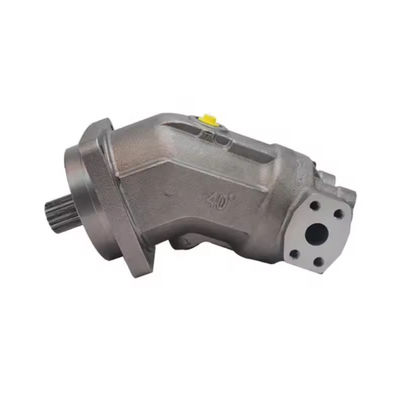

400 Bar Rexroth Axial Piston A2FM Motor Low noise operation For Hydraulic Drives 0

Competitive Advantage:

1. The A2FM motor is designed for broad compatibility with various hydraulic fluids, ensuring optimal lubrication and performance across diverse systems, and when integrated with a hydraulic motor, it adapts seamlessly to different fluid viscosities, maintaining consistent operation and prolonging component life in a wide range of industrial applications, ensuring longevity.

2. The A2FM motor is engineered for straightforward installation and seamless integration into existing hydraulic systems, and when combined with an axial piston motor, it simplifies retrofitting and upgrades, ensuring minimal disruption and rapid system deployment while delivering consistent, high‐quality hydraulic performance for a variety of industrial applications, guaranteeing unmatched reliability consistently.

3. CANopen-enabled communication provides 100Hz torque/speed monitoring, enabling predictive maintenance via SCADA for oil drilling top drives, reducing unplanned downtime by 30%.

The Analysis For Rexroth A2FM Fixed Displacemen Piston Motor Common Breakdown:

1. Insufficient hydraulic fluid in the system can result in inadequate oil supply to the A2FM motor, causing pressure drops, higher temperatures, and unstable operation. Low fluid levels may stem from leaks or poor maintenance. Prompt fluid replenishment and a detailed inspection of the hydraulic motorand lines are essential to identify and fix the issue.

2. Failure of the pressure relief valve can result in abnormal pressure fluctuations within the A2FM motor system, adversely affecting power output and stability. Faulty pressure regulation may also damage internal components. Regular testing of control devices and evaluation of the axial piston motor’s pressure relief functionality are crucial for maintaining safe operation.

3. Swashplate Return Spring Fatigue Causes Startup Delay‌: Spring modulus reduction due to high-frequency cycling extends response time beyond 3 seconds. Replace spring assembly when preload drops below 40N/mm².
