Harvester Axial Piston Motor Low Noise Operation 45cc For Material Handling

Brand Name:	SY Hydraulic
Model Number:	SY-A2FM
MOQ:	1pc
Price:	USD 500-1500 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Max Speed:

5600 Rpm

Material:

Cast Iron

Application:

Mobile Machinery

Displacement:

45-180cc

Seals:

NBR Shaft Seal Ring In FKM

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

45cc Harvester Axial Piston Motor

Low Noise Harvester Axial Piston Motor

Product Description

Harvester Axial Piston Motor Low Noise Operation 45cc for Material Handling

Features:

1. Fixed mounting structure ensures stable and reliable operation within hydraulic systems.
2. Skewed axial piston design optimizes power transmission efficiency in hydraulic drives.
3. Bent-axis rotary group configuration enhances dynamic response with precision matching.
4. Engineered for both open and closed hydrostatic circuits to enable versatile applications.
5. Customized for mobile and stationary applications providing a broad spectrum of solutions.
6. Output speed directly proportional to pump flow
7. Adjustable output speed via displacement settings
8. Torque output increases with pressure differential
9. High power density
10. Compact design for space-saving integration

Technical data:

Size		NG		45	56	63	80	90	107	125	160	180
Displacement geometric, per revolution		V_g	cm³	45.6	56.1	63	80.4	90	106.7	125	160.4	180
Speed maximum		n_nom	rpm	5600	5000	5000	4500	4500	4000	4000	3600	3600
Speed maximum		n_max	rpm	6200	5500	5500	5000	5000	4400	4400	4000	4000
Input flow at nnom and Vg		q_V	L/min	255	281	315	362	405	427	500	577	648
Torque at V_g and	Δp = 350 bar	T	Nm	254	313	351	448	501	594	696	893	1003
Torque at V_g and	Δp = 400 bar	T	Nm	290	357	401	512	573	679	796	1021	1146
Rotary stiffness		c	kNm/rad	4.18	5.94	6.25	8.73	9.14	11.2	11.9	17.4	18.2
Moment of inertia for rotary group		J_GR	kgm²	0.0024	0.0042	0.0042	0.0072	0.0072	0.0116	0.0116	0.022	0.022
Maximum angular acceleration		a	rad/s²	14600	7500	7500	6000	6000	4500	4500	3500	3500
Case volume		V	L	0.33	0.45	0.45	0.55	0.55	0.8	0.8	1.1	1.1
Mass (approx.)		m	kg	13.5	18	18	23	23	32	32	45	45

Specifications:

Warranty	1 Year
Transport Package	Standard Export Wooden Case
Structure	Axial Piston motor
Type	Mobile machinery piston motor
Production Capacity	2000-3000 pcs/month
HS Code	8412299090
Application	Mobile crane, Combine Harvester, Concrete mixer truck
Maximum speed	5600rpm
Delivery Time	15-30 Days after Payment
Displacemen	45-180cc

Applications:

1. In today's advanced construction machinery hydraulic systems, the integration of our innovative piston motor delivers superior performance and consistent reliability under high load conditions. This state-of-the-art actuator features exceptional energy efficiency, robust torque output, and precise flow control, ensuring smooth operation even during heavy-duty tasks. Engineered with durability in mind, it significantly reduces downtime and maintenance costs while enhancing overall productivity and safety in modern construction projects.

2. In modern construction projects, the implementation of our advanced axial piston motor in hydraulic systems ensures high-efficiency energy conversion and accurate control. Designed with superior sealing and wear-resistant features, this actuator adapts perfectly to harsh environments and continuous operating cycles. It provides powerful, reliable performance for equipment like excavators and bulldozers while delivering a rapid response. This high-performance solution significantly boosts operational efficiency and reduces maintenance downtime, aligning with the highest industry standards.

3. For deep-sea trawl winches, 500bar transient pressure handles 2000m cable tension shocks. Bidirectional rotation enables automatic spooling, while chrome-plated pistons and independent drains extend maintenance to 2 years/8000hrs‌

4. For oceanographic winches, closed-loop compatibility enables 0-30m/min stepless speed control with variable pumps. Temperature compensation valves maintain flow stability from -20℃ to +60℃.

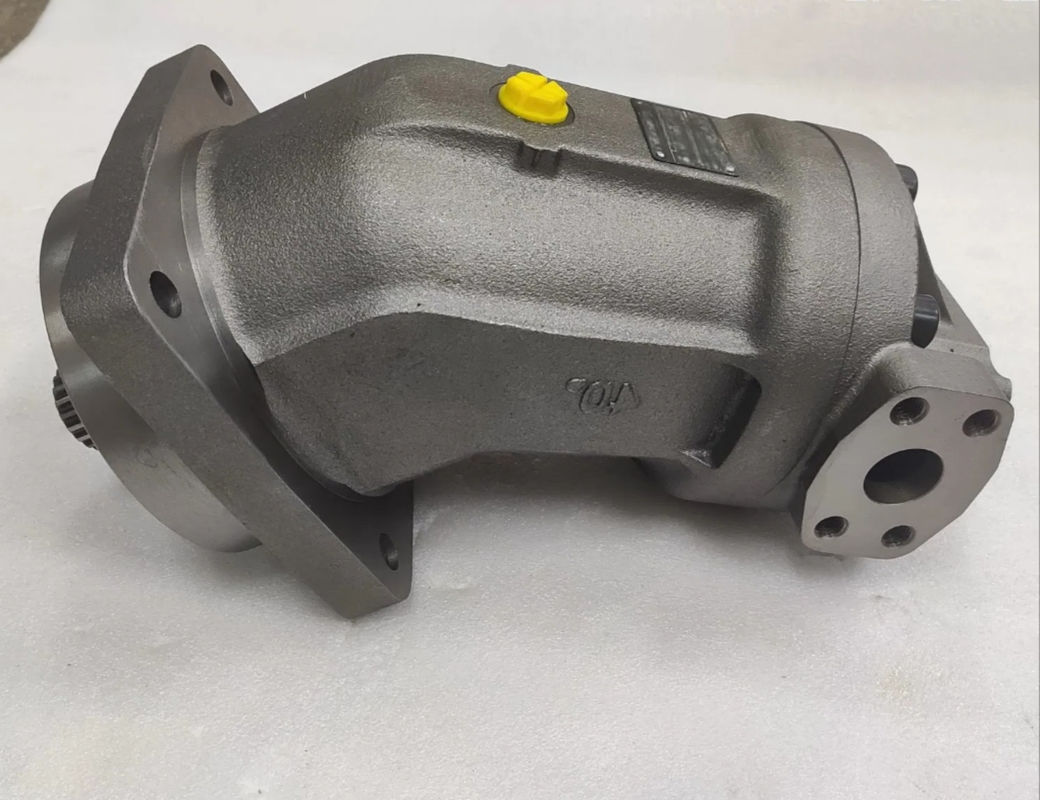

Harvester Axial Piston Motor Low Noise Operation 45cc For Material Handling 0

Competitive Advantage:

1. Our innovative piston motor features advanced skewed design and high-precision manufacturing that provide high power density, low energy consumption, long service life, and outstanding sealing and wear resistance, ensuring stable power output in extreme conditions and significantly boosting overall equipment performance and productivity.

2. Our axial piston motor incorporates a unique one-piece tapered piston structure to optimize hydraulic energy conversion and deliver precise flow control, meeting the rigorous demands for rapid response and high-precision control in diverse industrial applications.

3. With ≤50ms closed-loop response and 0.1cc/rev displacement tuning, the axial piston motor delivers ±0.02mm positioning repeatability for injection molding ejectors, increasing thin-wall product yield to 99.8%.

4. Engineered with premium materials and advanced thermal management, this hydraulic motor maintains excellent performance under high-temperature and high-pressure conditions, offering exceptional vibration, shock, and corrosion resistance for reliable power in industrial and construction applications.

The Analysis For Rexroth A2FM Fixed Displacemen Piston Motor Common Breakdown:

1. In this fault analysis, fluid leakage in the piston motor is typically caused by seal degradation, improper installation, or material fatigue. The resulting leakage lowers system pressure and overall efficiency, leading to potential overheating and damage to adjacent components. Regular maintenance, including thorough inspection and timely replacement of seals, is crucial to prevent performance degradation and ensure optimal reliability in critical hydraulic applications.

2. Overheating in an axial piston motor often occurs under prolonged high-load conditions when cooling channels are blocked or the heat dissipation system is inadequate. Elevated temperatures compromise oil viscosity and lubrication performance, accelerating component wear and risking system instability. Regular cleaning, temperature monitoring, and ensuring optimum fluid flow are essential measures to mitigate overheating and maintain peak operational performance.

3.‌ ‌Contamination in a hydraulic motor is a common fault where foreign particles, moisture, or other impurities infiltrate the hydraulic oil. This contamination accelerates wear on internal components, causing unstable pressure levels and sluggish system responses. Implementing robust filtration systems, routine oil sampling, and timely maintenance helps ensure optimal oil quality and reliable operation under demanding conditions.
