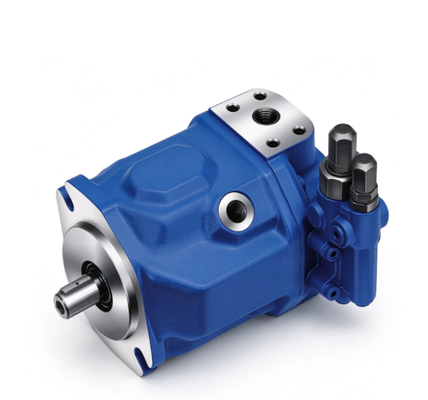

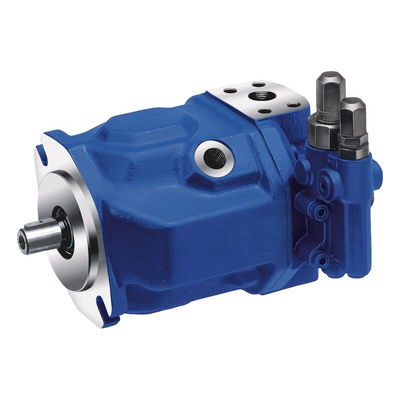

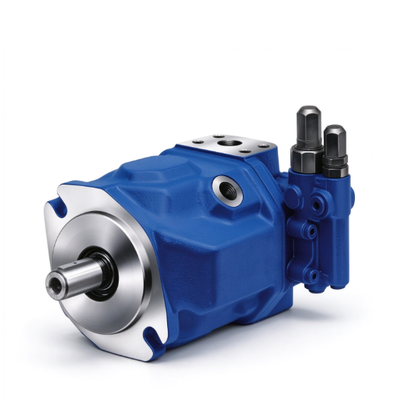

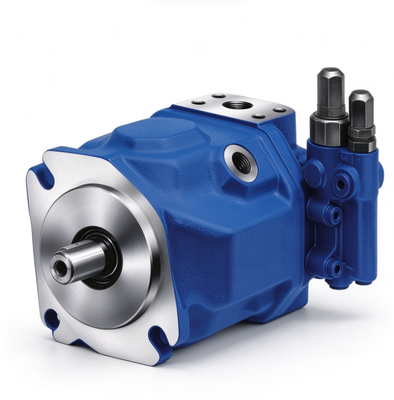

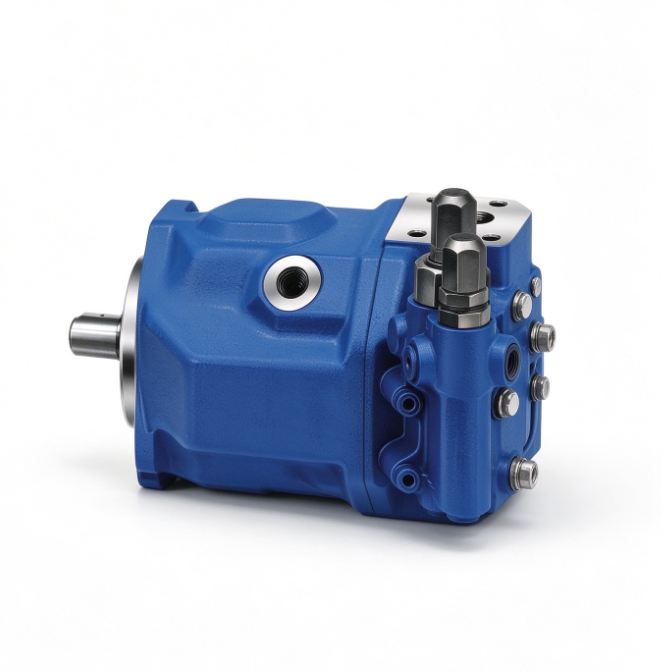

Rexroth A10VSO100DFR1/31R-VPA12KB5 100cc Axial Piston Variable Hydraulic Pump

Brand Name:	SY Hydraulic
Model Number:	SY-A10VSO
MOQ:	1PC
Payment Terms:	T/T
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Condition:

Brand New

Performance:

Same As Orginal

Color:

Available

Warranty:

1 Year

Delivery Time:

Based On Stock

Packaging Details:

Standard Export Wooden Case

Supply Ability:

500 pcs per month

Product Description

Rexroth A10VSO 100DFR1 31R-VPA12KB5 Open Circuit Variable Piston Pump

Key Features

· Swashplate variable displacement design, stepless flow adjustment

· DFR1 pressure-flow compound control, energy-saving load sensing function

· Rated pressure 280bar, peak 350bar, stable output for heavy duty

· Low noise cast iron housing, high power density

· Standard SAE mounting interface, easy replacement & installation

· Suitable for mineral hydraulic oil, long service life

Technical Parameters

Item	Parameter
Model	A10VSO100DFR1/31R-VPA12KB5
Type	Axial Piston Variable Pump, Swashplate Design
Displacement	100 cm³/rev (100cc)
Rated Pressure	280 bar (4060 psi)
Max Peak Pressure	350 bar (5075 psi)
Control Mode	DFR1: Pressure & Flow Control (Load Sensing)
Circuit Type	Open Circuit
Rotation Direction	Clockwise (R, viewed from shaft end)
Series	Series 31
Shaft	Standard shaft as code 12
Seal	Standard shaft as code 12
Max Speed	2200 rpm
Weight	~36 kg
Mounting	SAE standard flange

Application

1. injection molding machines

2. hydraulic press

3. material handling

4. construction machinery auxiliary hydraulic system

5. test bench, metallurgical equipment

6. ship deck machinery, hydraulic power unit

Rexroth A10VSO100DFR1/31R-VPA12KB5 100cc Axial Piston Variable Hydraulic Pump

Competitive Advantages

1. Equipped with DFR1 pressure-flow compound control, it realizes load-sensing energy saving, automatically matches flow and pressure according to working conditions, effectively reducing system heat generation and power consumption.

2. Rated pressure up to 280bar, peak pressure 350bar, stable output under heavy load; cast iron pump body with optimized internal structure, low noise and long service life.
