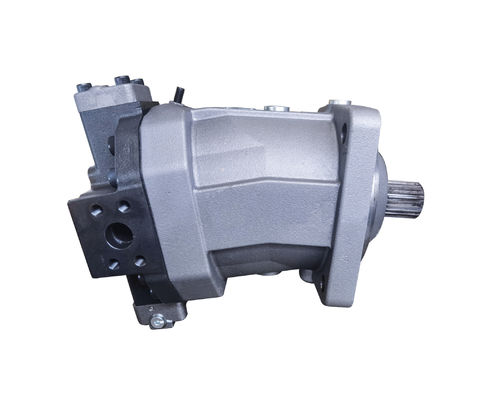

Bent Axis Design Rexroth Axial Piston A6VM Motor 1273 Nm Low Inertia Moment

Brand Name:	SY Hydraulic
Model Number:	SY-A6VM
MOQ:	1pc
Price:	USD 1000-3000 / pc
Payment Terms:	T/T
Supply Ability:	1000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Classification Society Certification

Specification:

A6VM

Application:

Excavator, Loader, Construction Machinery

HS Code:

8412299090

Maximum Speed:

6150 Rpm

Size:

80cc-250cc

Packaging Details:

Standard Export Wooden Case

Supply Ability:

1000 pcs per month

Highlight:

Rexroth Axial Piston A6VM Motor

Low Inertia Moment A6VM Motor

Product Description

Bent-Axis Design Low Inertia Moment Rexroth Axial Piston Motor With torque 1273 Nm

Features:

1. Axial tapered piston rotary group with bent-axis design.

2. Compatible with open/closed-circuit hydrostatic drive systems.

3. Infinitely adjustable displacement from V_{g max} to V_{g min}=0.

4. Output speed proportional to flow rate and inversely proportional to displacement.

5. Torque increases linearly with pressure differential and displacement.

6. Compact bent-axis structure.

7. High power-to-weight ratio design.

8. Long-life bearing system.

9. Low inertia moment characteristic.

10. Optimized starting performance.

Technical data:

Size		NG		80	107	140	160	200	250
Geometric displacement, per revolution		V_{g max}	cm³	80	107	140	160	200	250
		V_{g min}	cm³	0	0	0	0	0	0
		V_{g x}	cm³	51	68	88	61	76	205
Maximum rotational speed(while adhering to the maximum permissible inlet flow)	at V_{g max}	n_nom	rpm	3900	3550	3250	3100	2900	2700
	at V_g < V_{g x}	n_max	rpm	6150	5600	5150	4900	4600	3300
	where V_{g 0}	n_max	rpm	7350	6300	5750	5500	5100	3300
Inlet flow	at n_nom and V_{g max}	q_{v max}	l/min	312	380	455	496	580	675
Torque	at V_{g max} and Δp = 400 bar	T	Nm	509	681	891	1019	1273	‒
Torque	at V_{g max} and Δp = 350 bar	T	Nm	446	596	778	891	1114	1391
Rotary stiffness	V_{g max} to V_g/2	c_min	kNm/rad	16	21	34	35	44	60
Rotary stiffness	V_g/2 to 0 (interpolated)	c_min	kNm/rad	48	65	93	105	130	181
Moment of inertia for rotary group		J_TW	kgm²	0,008	0.0127	0.0207	0.0253	0.0353	0,061
Maximum angular acceleration		α	rad/s²	24000	19000	11000	11000	11000	10000
Case volume		V	l	1.2	1.5	1.8	2.4	2.7	3
Weight approx.		m	kg	36	46	61	62	78	100

Specifications:

Warranty		1 Year
Specification		SY-A6VM
Place of Origin		China
Type		Rexroth axial piston motor
Color		Available any color
HS Code		8412299090
Application		excavator, loader, construction machinery
Maximum pressure		450 bar
Delivery Time		15-30 Days after Payment
Displacement		80-250 cm³

Applications:

1. Construction machinery (excavators, loaders): Gearless transmission reduces maintenance costs, and modular controls enable multi-stage speed adjustment‌.

2. Construction cranes: Low inertia moment reduces start-stop response time, and high-pressure plunger rods extend service life‌.

3. Agricultural machinery (harvesters, tractors): Wide viscosity adaptability (5-1600 mm²/s) supports low-grade oils, reducing maintenance costs for agricultural machinery‌.

4. Mining equipment: Copper alloy plunger sleeves reduce friction, and integrated counterbalance valves enhance mining equipment safety‌.

5. Port machinery (gantry cranes, Reach Stacker): Gearless design reduces failure rates, and ISO 4406 compliance ensures system reliability‌.

Competitive Advantage:

1. The bent-axis design of the axial piston motor achieves 98% volumetric efficiency, drastically reducing energy consumption.

2. Infinitely variable displacement (0 to Vg max) in the piston motor enables precise flow control adaptation.

3. High power density (>200kW/L) of the axial piston structure reduces installation space by over 50%.

4. Hydrostatic four-quadrant operation in piston motors enables energy recovery, boosting system efficiency by 30%.

5. Contamination-resistant axial piston motor operation with NAS Class 10 oil cleanliness triples maintenance intervals.

Details model of Rexroth A6VM piston motor :

R902050639	A6VM200DA1/63W-VAB017DB
R902050953	A6VM140DA1/63W-VZB020DB
R902052390	A6VM140HD1D/63W-VZB010B
R902054692	A6VM107HD1E/63W-VZB020B
R902054886	A6VM200EP2/63W-VAB010WB
R902060117	AA6VM200HD1/63W-VSD510B
R902060120	A6VM160HZ1/63W-VZB027B
R902060180	A6VM140HD2D/63W-VZB010B
R902060418	A6VM200EP2D/63W-VAB020WB
R902060460	A6VM160HA1A/63W-VZB380A S
R902063606	A6VM160HD1/63W-XPB010B S
R902063758	A6VM140HA1T/63W-VZB380DA
R902063883	A6VM107HA1TA/63W-VAB370A SK
R902065743	A6VM160EP2D/63W-VZB017HB
R902065805	A6VM160HD2D/63W-VZB010B
R902065844	A6VM200HD1/63W-VAB027A
R902067535	A6VM200HA2/63W-VAB027DA
R902067704	A6VM107HA1T/63W-VZB027A
R902067846	A6VM107DA4/63W-VAB027B
R902068589	AA6VM80HD1/63W-VSC510B
R902072518	A6VM80HD1/63W-VAB020A
