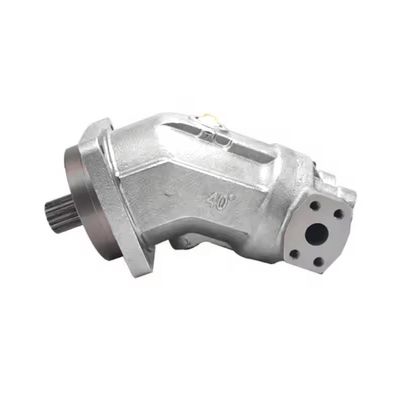

Cast Iron Housing Rexroth Axial Piston Motor A2FM56 5000rpm For Mobile Machinery

Rexroth Axial Piston Motor A2FM56 Cast Iron Housing 5000rpm for Mobile Machinery

Features:

1. Axial tapered piston rotary group with bent-axis design
2. Suitable for hydrostatic drives in open and closed circuits
3. Output speed proportional to motor flow and motor displacement
4. Torque increases with pressure differential and displacement
5. Finely graduated displacement sizes for drive adaptation
6. High power density (up to 45MPa pressure capacity)
7. Compact structure design (weight from 10kg)
8. Total efficiency >90% with high volumetric efficiency
9. Starting torque efficiency >85%
10. Economical cost-optimized design

Technical data:

Specifications:

Applications:

Competitive Advantage:

1. The A2FM motor incorporates advanced thermal management features that efficiently dissipate heat and maintain optimal operating temperatures, and when used with a hydraulic motor, it prevents overheating during prolonged operation, ensuring continuous performance, enhanced safety, and reliable service even under the most demanding industrial conditions, delivering outstanding efficiency always remarkably.

2. The A2FM motor is engineered for extreme reliability in harsh environments, with robust construction and advanced materials that withstand severe operating conditions, and when integrated with a piston motor, it maintains stable performance under fluctuating pressures, ensuring continuous operation and minimal downtime even in the most challenging industrial settings, remarkably.

3. Submerged bearing design certified to MIL-STD-810G allows 4-hour continuous submersion at 3m depth, meeting amphibious vehicle turret drive requirements for all-weather military operations.

The Analysis For Rexroth A2FM Fixed Displacemen Piston Motor Common Breakdown:

1. Persistent vibration in the A2FM motor can accelerate wear of internal components, loosen fasteners, and induce structural fatigue, thereby reducing overall efficiency. Vibration issues are often caused by improper installation or external interference. A detailed inspection of the hydraulic motor components, along with vibration damping measures, is recommended to protect the system.

2. Intrusion of foreign particles or moisture into the hydraulic oil can accelerate internal wear, damage seals, and cause corrosion in the A2FM motor, reducing system efficiency. To prevent contamination, regular oil replacement, improved filtration, and inspection of the piston motor are essential to maintain a clean and efficient hydraulic system.

3. Misaligned Coupling Overheats Bearings‌: >0.1mm/100mm radial misalignment causes >15℃/h bearing temp rise. Realign with laser to <0.05mm and monitor temp gradient.
